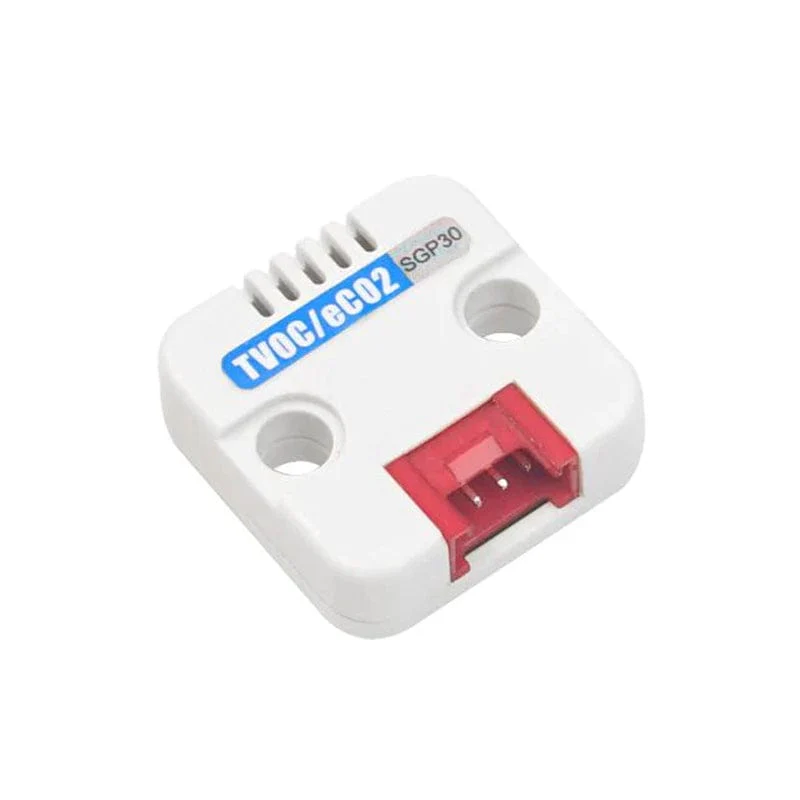

M5Stack TVOC/eCO2 Gas Sensor Unit (SGP30)
The TVOC/eCO2 mini unit is a digital multi-pixel gas sensor unit with integrated SGP30.
It mainly measures various VOC (volatile organic compounds) and H2 in the air. It can be programmed to detect TVOC (total volatile organic compounds) and eCO2 (equivalent carbon dioxide reading)Concentration measurement.
Typical measurement accuracy is 15% within the measurement range, the SGP30 reading is internally calibrated and output, which can maintain long-term stability. SGP30 uses I2C protocol communication with on-chip humidity compensation function, which can be turned on through an external humidity sensor.
If you need to obtain accurate results, you need to calibrate according to a known measurement source. SGP30 has a built-in calibration function. In addition, eCO2 is calculated based on the concentration of H2 and cannot completely replace "true" CO2 sensors for laboratory use.
Features
- TVOC/eCO2 concentration detection
- I2C communication (0x58)
- Outstanding long-term stability
- Humidity Compensation
- 2x LEGO™ Hole

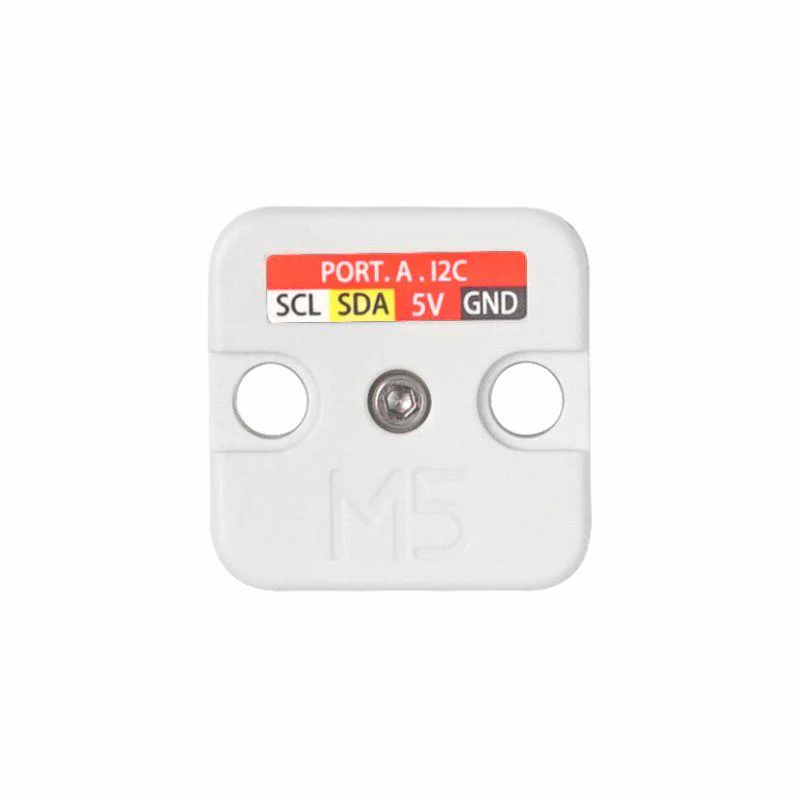

- HY2.0 4P interface

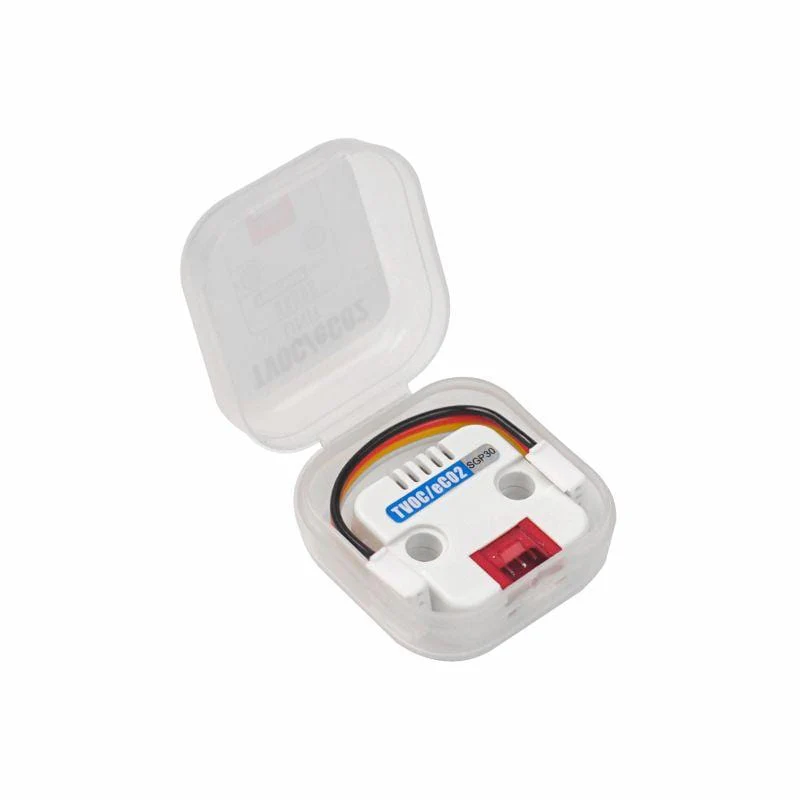

Package Contents
- 1x TVOC/eCO2 Mini Unit
- 1x HY2.0 Cable (5CM)
Specifications
| Specification | Parameter |
|---|---|
| Measurement range | Ethanol: 0-1000ppm, H2: 0-1000ppm, TVOC: 0-60000 ppb, eCO2: 400-60000 ppm |
| TVOC/eCO2 Sampling rate | 1Hz |
| TVOC/eCO2 Resolution | TVOC: 1/6/32bbp, eCO2: 1/3/9/31ppm |
| Communication protocol | I2C: 0x58 |
| Net Weight | 4g |
| Gross Weight | 8g |

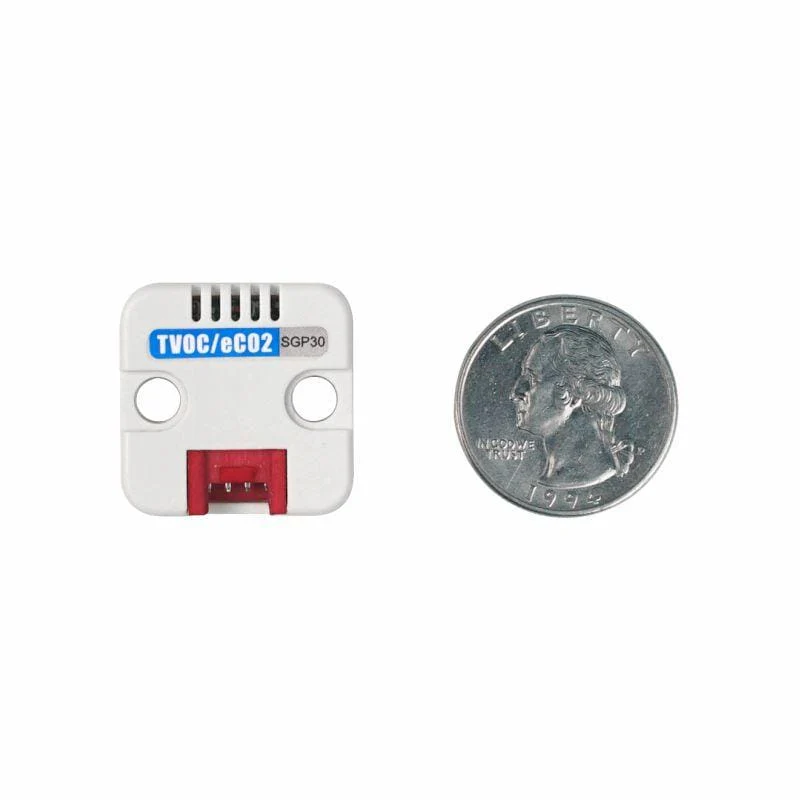

| Product Size | 24 x 24 x 13mm |
| Package Size | 35 x 36 x 18mm |
| Case material | Plastic (PC) |
