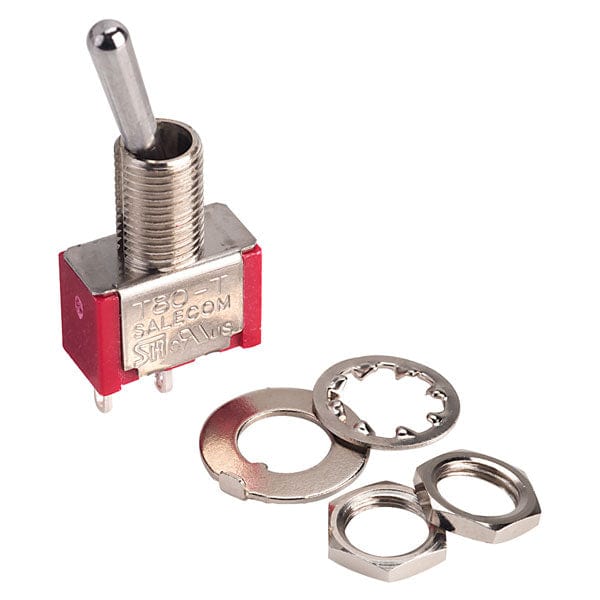

Toggle Switch (SPST) [discontinued]
Small SPST (on/off) toggle switch useful for connecting battery packs or making controls. Rated for up to 5A.
Body dimensions: 13.5mm wide x 7mm deep x 13.5mm high (including contacts). The overall height including the toggle is 33mm, and the thread diameter is 6mm.
Technical Details
- 5A Contact Current
- 125V Contact Voltage
- Copper Alloy Contact, Silver Plated
- Operating Temperature -30ºC to +85ºC
- Solder Lug Terminal
- 1/4-40UNS Thread
- 8.89mm Long Thread
- Bat Actuator
- 10.41mm Long Actuator
- Dimensions: 12.7 x 6.86 x 21.72mm
- Stainless Steel Housing
