Small 1.2" 8x8 Ultra Bright White LED Matrix (KWM-30881CWB) [Discontinued]

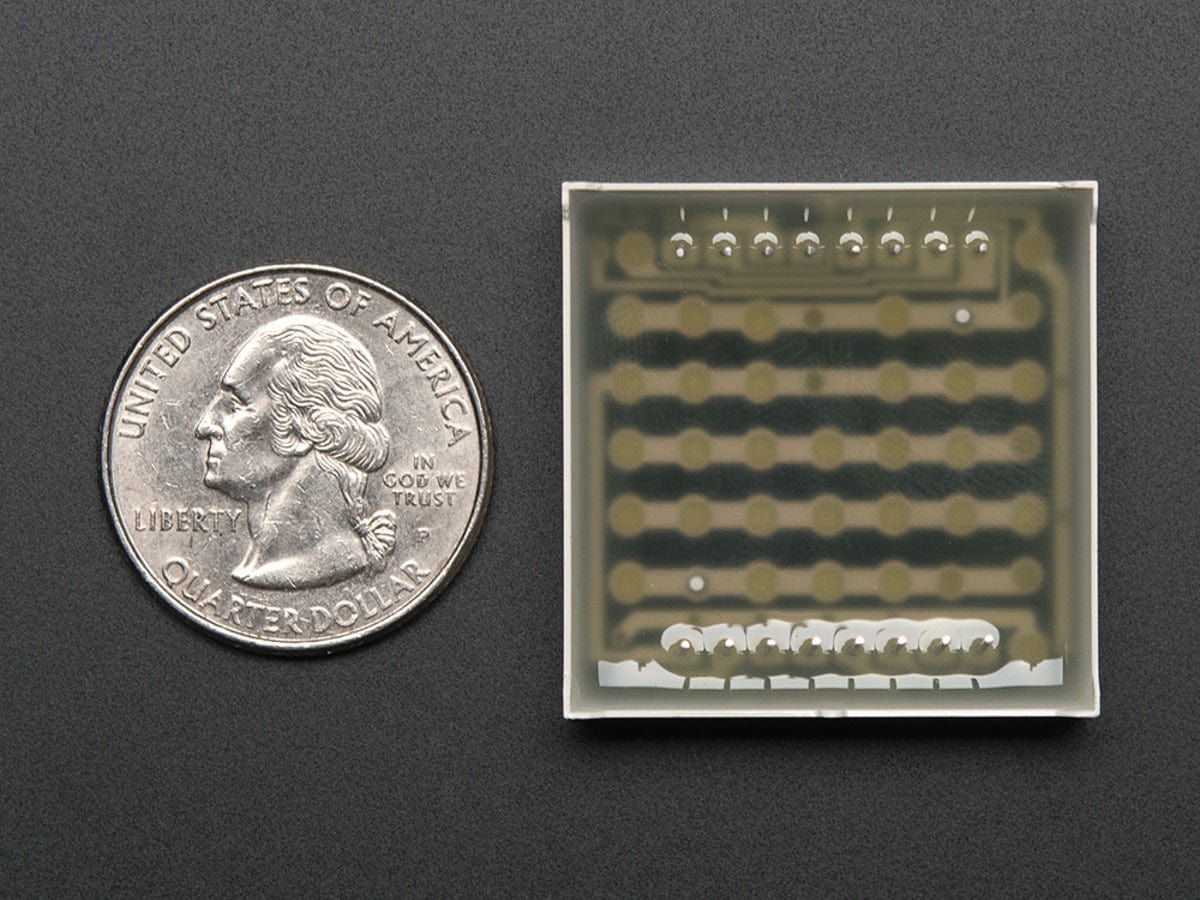

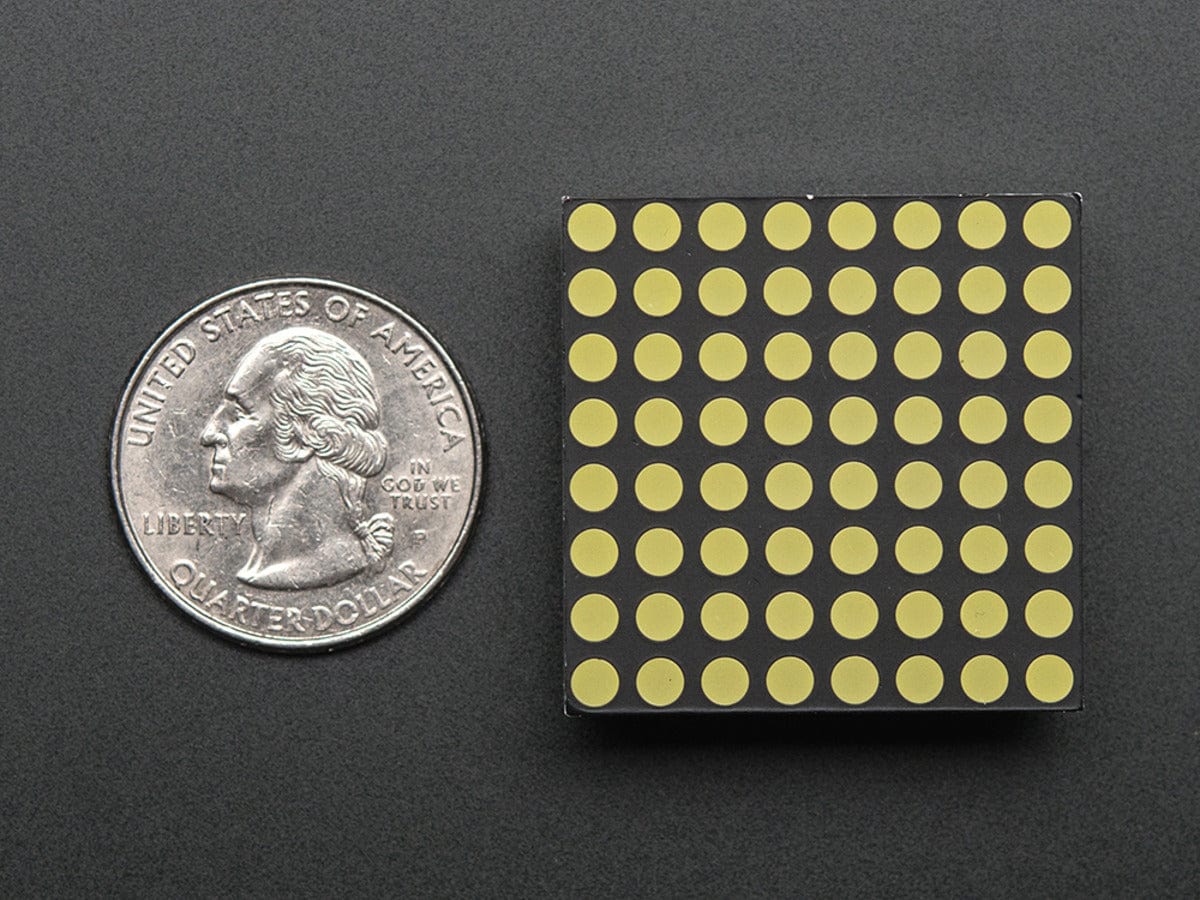

Make a scrolling sign or a small video display with this 8x8 gridded cool white LED matrix. Only 1.2" on a side, it is quite visible but not so large it won't plug into a breadboard! There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with one row on each side for wiring it up.
Since the display is in a grid, you'll need to 1:8 multiplex control it. We suggest either using a 6:21)
Technical Details
- Datasheet
- This is a Common Cathode LED Matrix
- The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8x8 LED matrices
- Using a high power shift register to drive 8x8 matrices with a NETduino
Original: $6.38
-65%$6.38
$2.23
Description
Make a scrolling sign or a small video display with this 8x8 gridded cool white LED matrix. Only 1.2" on a side, it is quite visible but not so large it won't plug into a breadboard! There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with one row on each side for wiring it up.
Since the display is in a grid, you'll need to 1:8 multiplex control it. We suggest either using a 6:21)
Technical Details
- Datasheet
- This is a Common Cathode LED Matrix
- The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8x8 LED matrices
- Using a high power shift register to drive 8x8 matrices with a NETduino
