High-Precision AD/DA Expansion Board for Raspberry Pi

High-Precision AD/DA Expansion Board for Raspberry Pi

There's no Analog-to-Digital/Digital-to-Analog (AD/DA) function on the Raspberry Pi GPIO interface, which can restrict the use of certain components in your project. This High-Precision AD/DA Board allows you to add high-precision AD/DA functions to your Raspberry Pi!

Note: Sensors pictured but not included!

Features

  • Standard Raspberry Pi 40-pin GPIO extension header
  • Onboard ADS1256, 8-channel 24-bit high-precision ADC (4ch differential input), 30ksps sampling rate
  • Onboard DAC8552, 2-ch 16-bit high-precision DAC
  • Onboard input interface via pin headers, for connecting analogue signal
    • the pinout is compatible with Waveshare sensor interface standard, easy to connect various analogue sensor modules
  • Onboard input/output interface via screw terminals, for connecting analogue/digital signal
  • Features AD/DA detect circuit, easy for signal demonstration

Resources

What's onboard?

  1. Raspberry Pi GPIO interface: for connecting with the Pi
  2. AD/DA input/output : screw terminals
  3. AD input: pin headers, the pinout is compatible with Waveshare sensor interface standard, easy to connect various analogue sensor modules
  4. 7.68M crystal
  5. LM285-2.5: provides the reference voltage for the ADC chip
  6. Photoresistor
  7. LED output indicator
  8. 10K potentiometer
  9. DAC8552 : 16bit high-precision DAC, 2ch
  10. Power indicator
  11. ADS1256 : 24bit high-precision ADC, 8ch (4ch differential input)
  12. ADC testing jumper
  13. DAC testing jumper
  14. Power selection jumper
  15. ADC reference ground configuration: when AD single inputted, the AINCOM is reference terminal, can be connected to GND or external reference voltage

Interface

PIN SYMBOL DESCRIPTION
1, 17 3.3V Power supply (3.3V)
2, 4 5V Power supply (5V)
3, 5, 7, 8, 10, 18, 22, 24, 26, 27, 28, 29, 32, 36, 38, 40 NC NC
6, 9, 14, 20, 25, 30, 34, 39 GND Ground
11 DRDY ADS1256 data ready output, low active
12 RESET ADS1256 reset input
13 PDWN ADS1256 sync/power off input, low active
15 CS0 ADS1256 chip select, low active
16 CS1 DAC8552 chip select, low active
19 DIN SPI data input
21 DOUT SPI data output
23 SCK SPI clock
31, 33, 35, 37 GPIO extend to sensor interface

$33.60
High-Precision AD/DA Expansion Board for Raspberry Pi—
$33.60

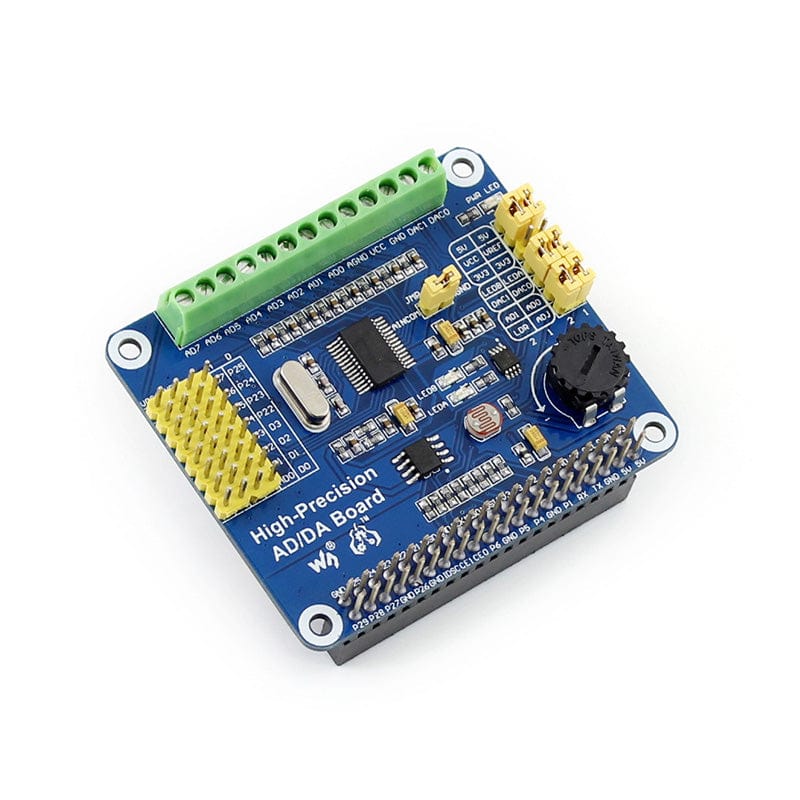

Product image 1

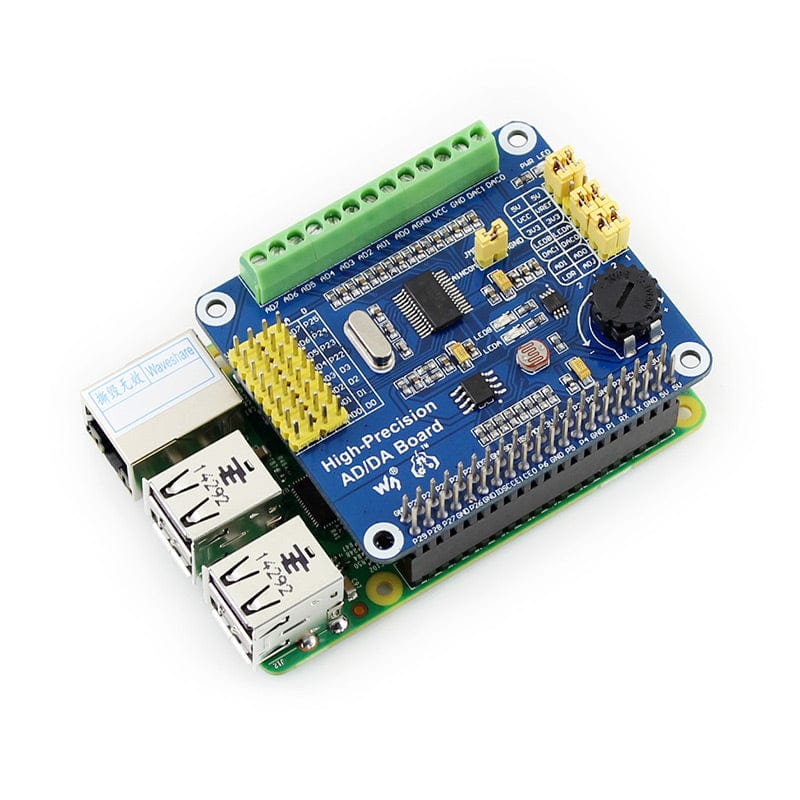

Product image 2

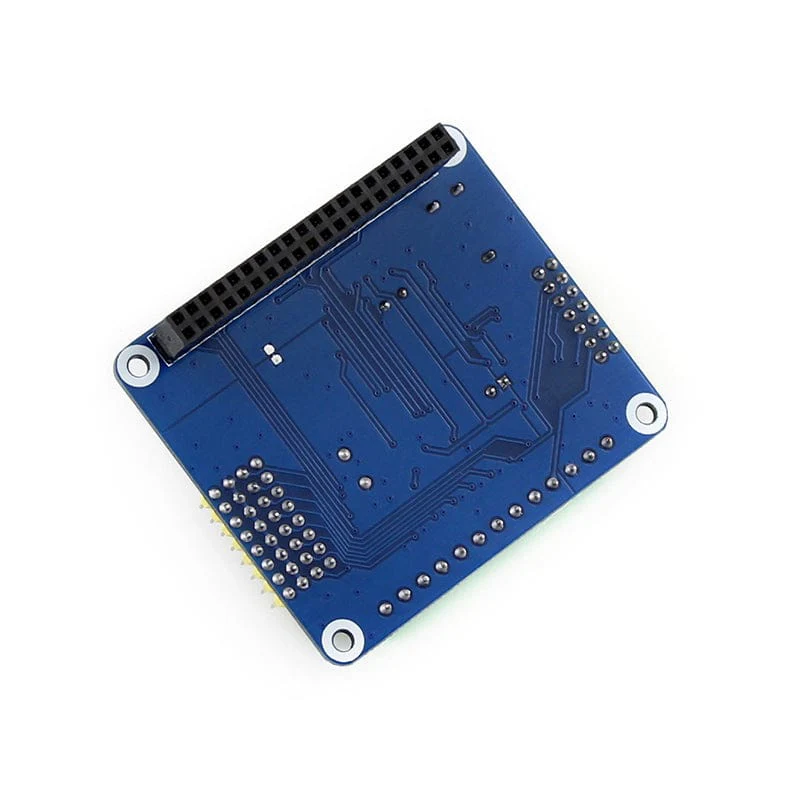

Product image 3
Product image 4
Product image 5

Description

There's no Analog-to-Digital/Digital-to-Analog (AD/DA) function on the Raspberry Pi GPIO interface, which can restrict the use of certain components in your project. This High-Precision AD/DA Board allows you to add high-precision AD/DA functions to your Raspberry Pi!

Note: Sensors pictured but not included!

Features

  • Standard Raspberry Pi 40-pin GPIO extension header
  • Onboard ADS1256, 8-channel 24-bit high-precision ADC (4ch differential input), 30ksps sampling rate
  • Onboard DAC8552, 2-ch 16-bit high-precision DAC
  • Onboard input interface via pin headers, for connecting analogue signal
    • the pinout is compatible with Waveshare sensor interface standard, easy to connect various analogue sensor modules
  • Onboard input/output interface via screw terminals, for connecting analogue/digital signal
  • Features AD/DA detect circuit, easy for signal demonstration

Resources

What's onboard?

  1. Raspberry Pi GPIO interface: for connecting with the Pi
  2. AD/DA input/output : screw terminals
  3. AD input: pin headers, the pinout is compatible with Waveshare sensor interface standard, easy to connect various analogue sensor modules
  4. 7.68M crystal
  5. LM285-2.5: provides the reference voltage for the ADC chip
  6. Photoresistor
  7. LED output indicator
  8. 10K potentiometer
  9. DAC8552 : 16bit high-precision DAC, 2ch
  10. Power indicator
  11. ADS1256 : 24bit high-precision ADC, 8ch (4ch differential input)
  12. ADC testing jumper
  13. DAC testing jumper
  14. Power selection jumper
  15. ADC reference ground configuration: when AD single inputted, the AINCOM is reference terminal, can be connected to GND or external reference voltage

Interface

PIN SYMBOL DESCRIPTION
1, 17 3.3V Power supply (3.3V)
2, 4 5V Power supply (5V)
3, 5, 7, 8, 10, 18, 22, 24, 26, 27, 28, 29, 32, 36, 38, 40 NC NC
6, 9, 14, 20, 25, 30, 34, 39 GND Ground
11 DRDY ADS1256 data ready output, low active
12 RESET ADS1256 reset input
13 PDWN ADS1256 sync/power off input, low active
15 CS0 ADS1256 chip select, low active
16 CS1 DAC8552 chip select, low active
19 DIN SPI data input
21 DOUT SPI data output
23 SCK SPI clock
31, 33, 35, 37 GPIO extend to sensor interface
