Gravity: LED Button - Blue

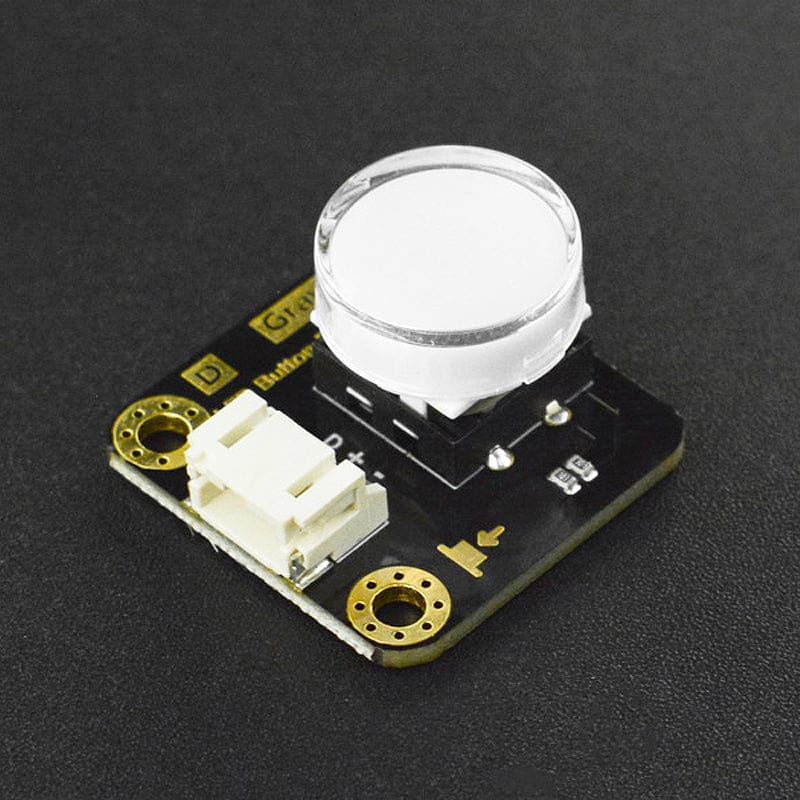

This is a simple LED-illuminated switch button with a transparent cap. It’s just like a basic switch button, but it lights up color(red/ yellow/ green/ blue/ white) when pressed down, which gives you visual feedback. These little buttons can be used with micro:bit to realize various fun interactive projects!

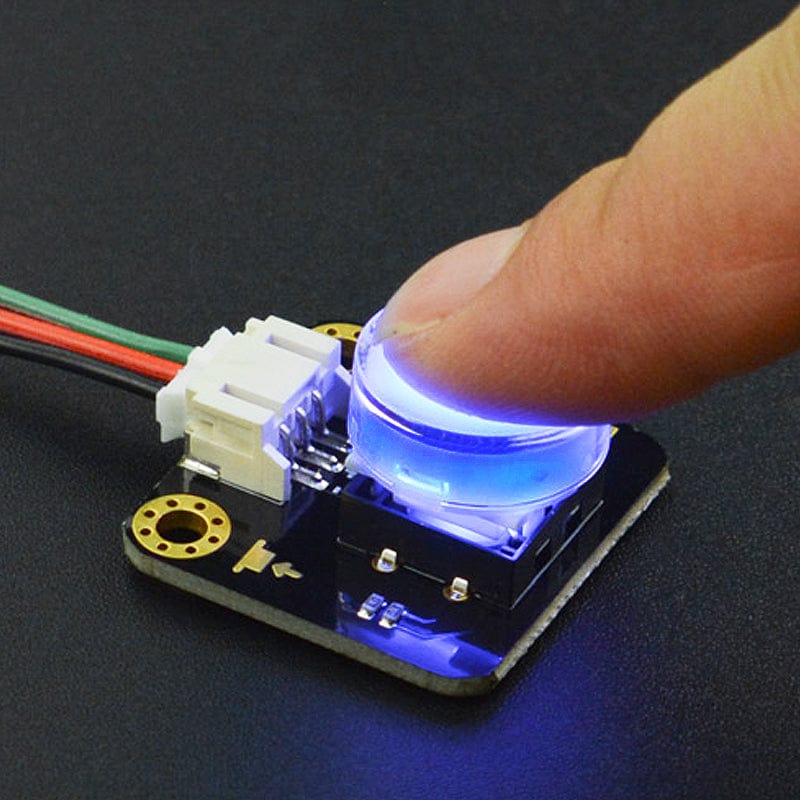

Note: When pressed down, the module outputs High, and the LED lights up. When released, the module outputs Low and the LED turns off.
Features
- Internal LED turns On when the button is pressed down.
Connection Diagram - Micro:Bit with IO Extender
Specifications
- Operating Voltage: +3.3 - 5V (3.3V is recommended)
- Output: Digital
- Connector: PH2.0-3-Pin

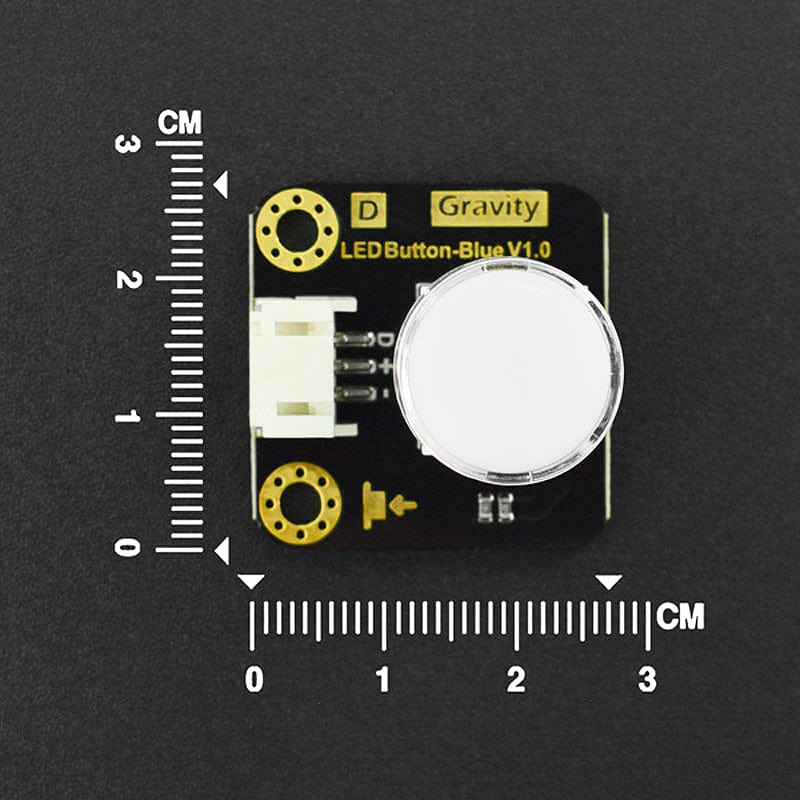

- Dimension: 27×26.5mm
- Colours Available: Red, Yellow, Green, Blue, White
Resources

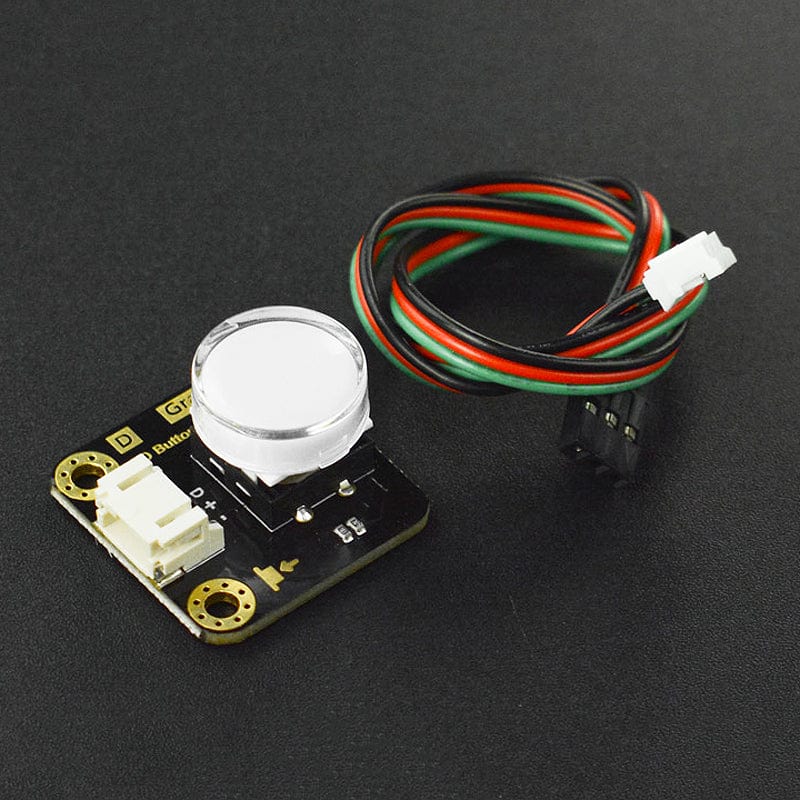

Package Contents
- 1x Gravity: LED Button - Blue
- 1x Digital Sensor Connector
Original: $4.40
-65%$4.40
$1.54
Description
This is a simple LED-illuminated switch button with a transparent cap. It’s just like a basic switch button, but it lights up color(red/ yellow/ green/ blue/ white) when pressed down, which gives you visual feedback. These little buttons can be used with micro:bit to realize various fun interactive projects!
Note: When pressed down, the module outputs High, and the LED lights up. When released, the module outputs Low and the LED turns off.
Features
- Internal LED turns On when the button is pressed down.
Connection Diagram - Micro:Bit with IO Extender
Specifications
- Operating Voltage: +3.3 - 5V (3.3V is recommended)
- Output: Digital
- Connector: PH2.0-3-Pin
- Dimension: 27×26.5mm
- Colours Available: Red, Yellow, Green, Blue, White
Resources
Package Contents
- 1x Gravity: LED Button - Blue
- 1x Digital Sensor Connector
