ESP32-S3 1.47" Touch Display Dev Board with SD Slot

Packing the powerful ESP32-S3 microcontroller, this compact capacitive touch display USB-C dev board from Waveshare offers a range of useful features in a tidy package.

The microcontroller chip is a ESP32-S3R8 - a high-performance Xtensa 32-bit LX7 dual-core processor (up to 240MHz), supporting 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard ceramic antenna. It's backed up by 16MB flash sitting right next to it on the PCB.

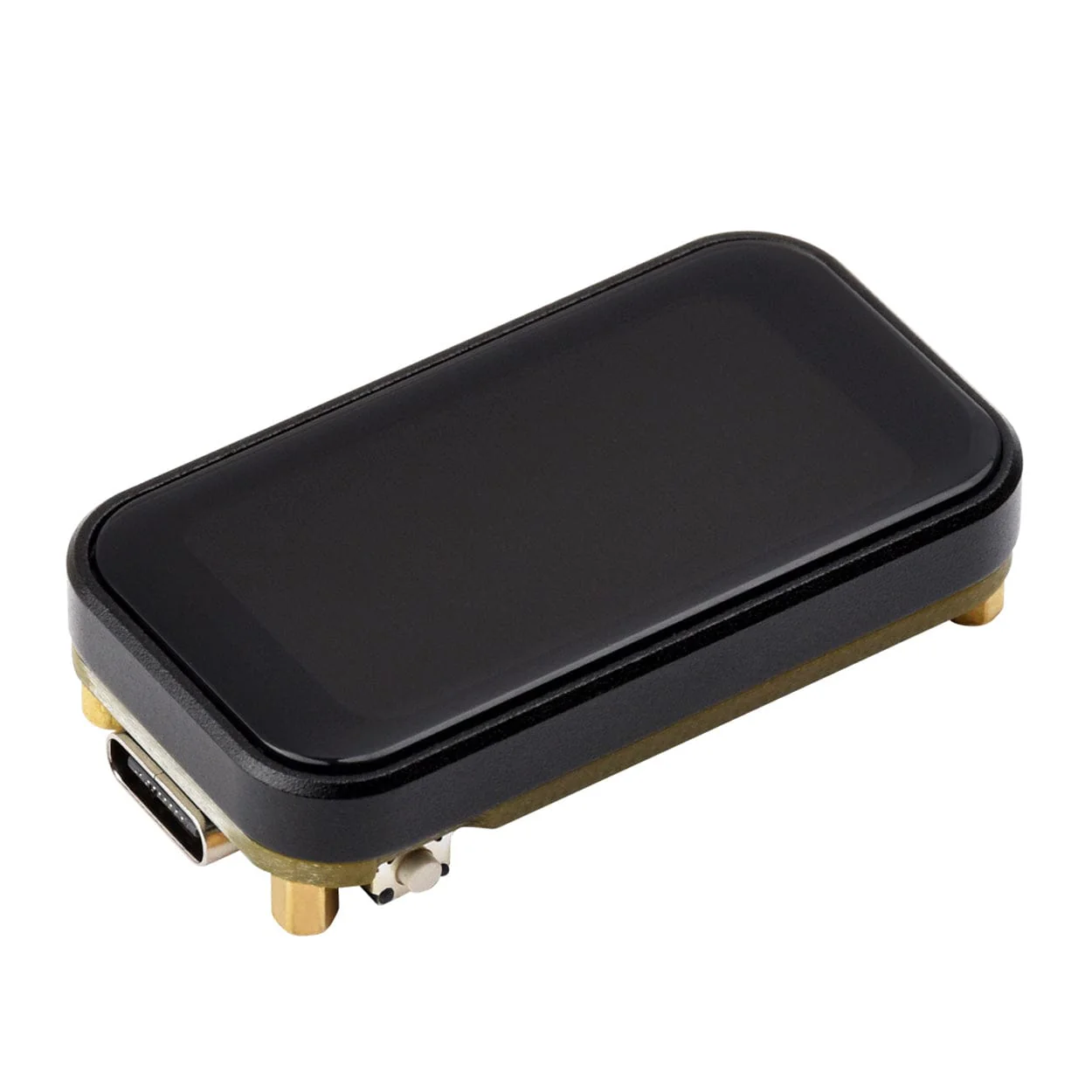

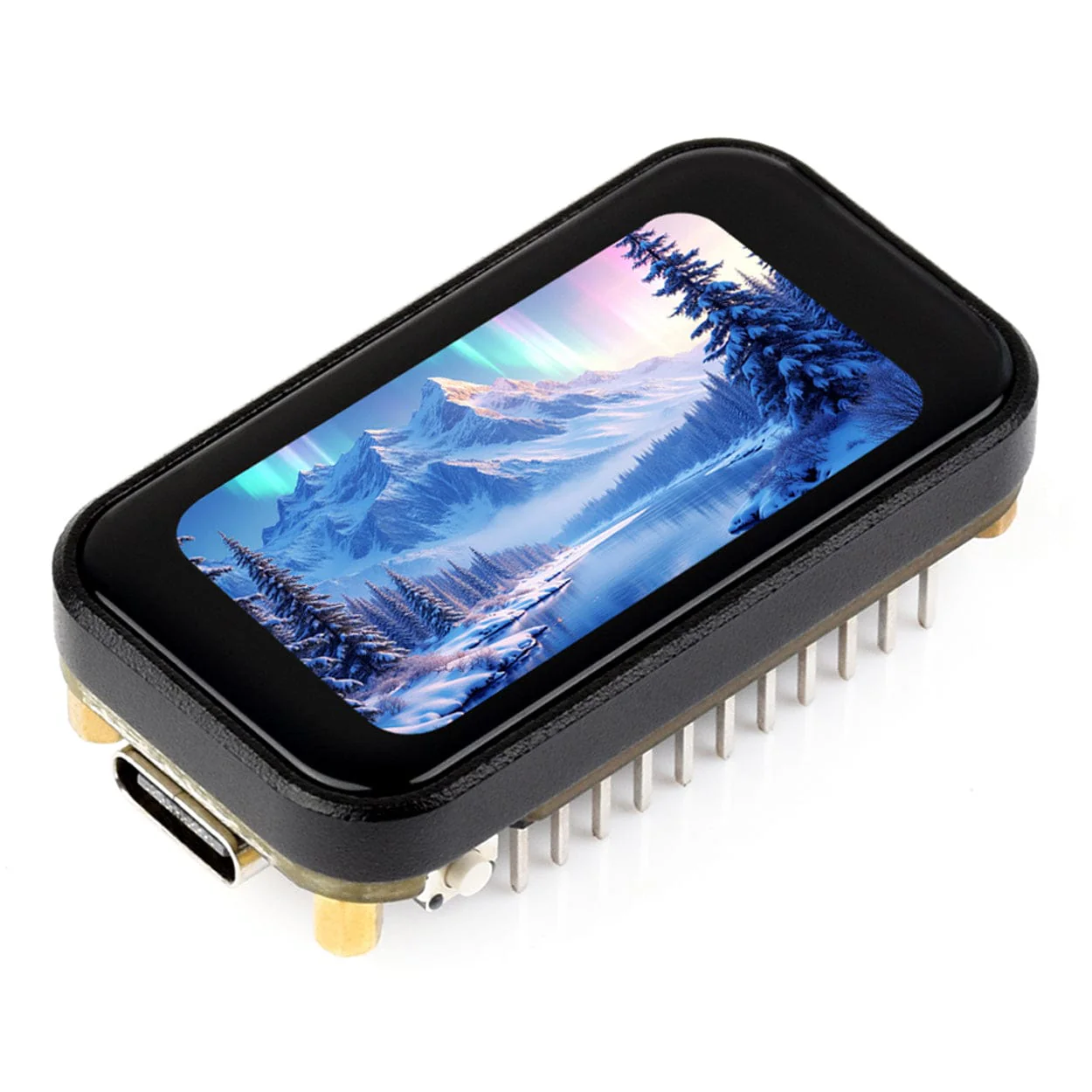

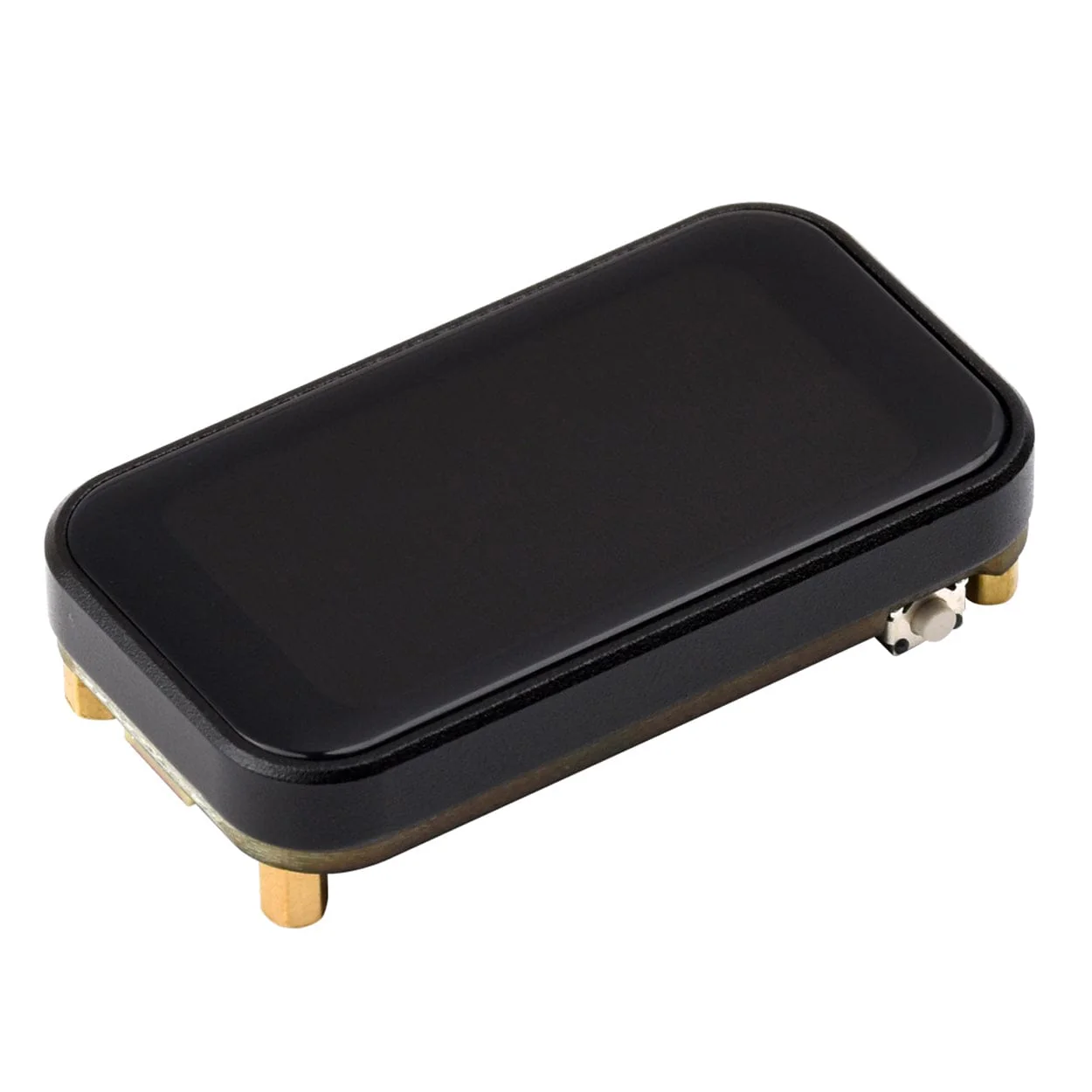

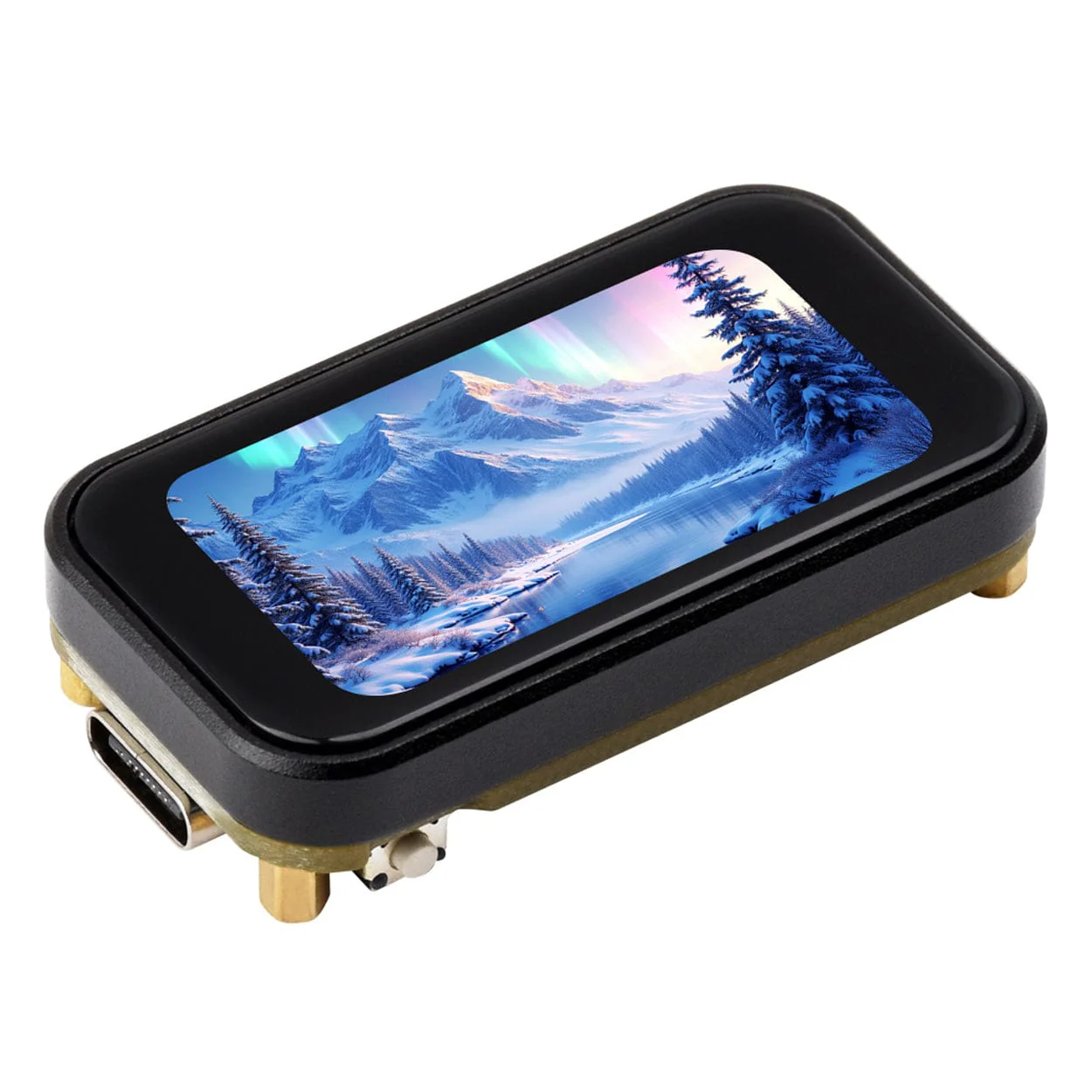

The display is a 1.47" IPS capacitive touchscreen panel with a 172x320 resolution, offering 262k colours. It has an I2C touch interface, reducing the number of IO pins used for touch inputs.

You'll also find a MicroSD slot, RESET and BOOT buttons, and USB-C for power and programming.

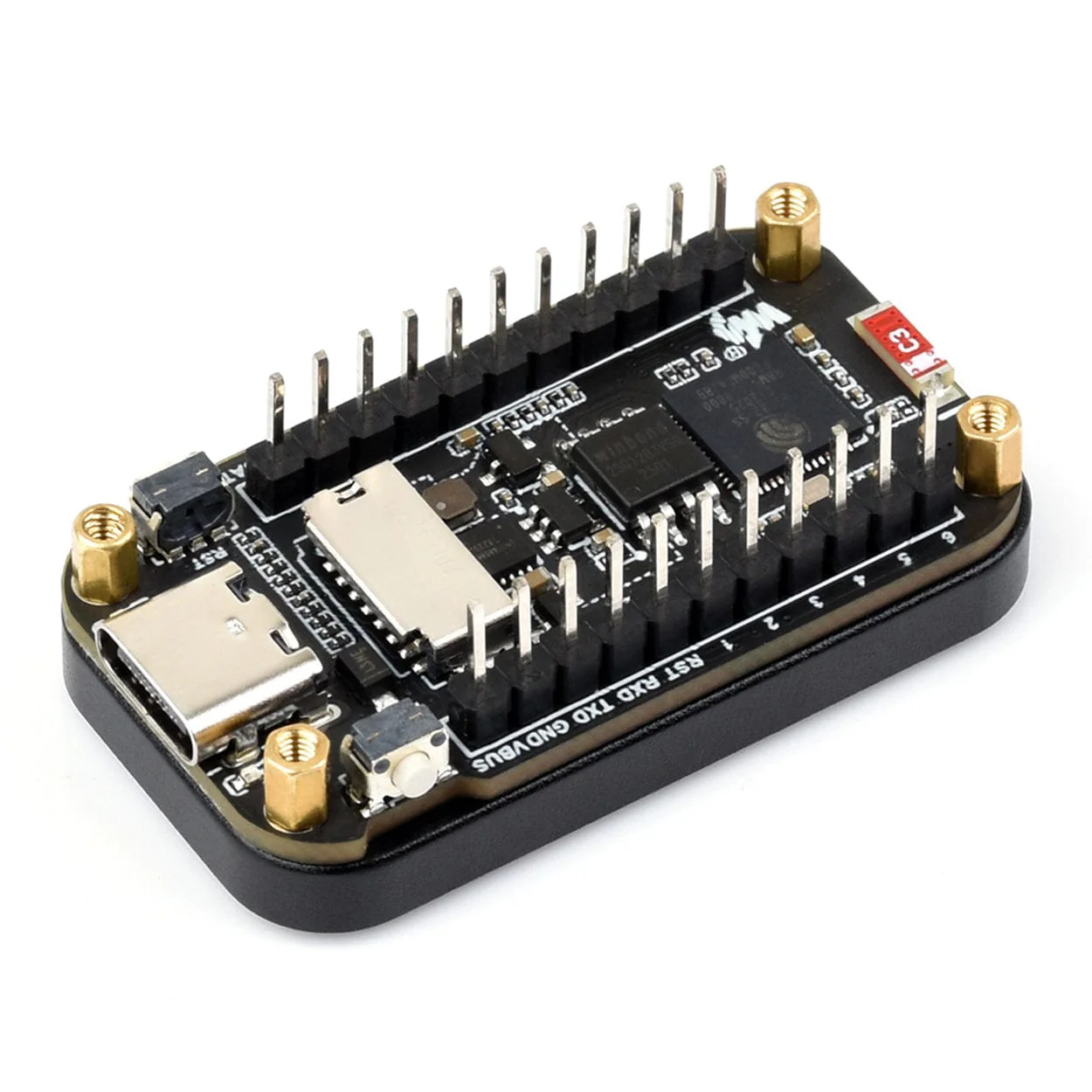

There are two versions of this board - one with the headers loose in the package, and another with them pre-soldered to the board. Please select an option before adding to your cart.

---

Secret features? Whilst not documented by Waveshare, there is an ETA6098 Li-Ion battery charger chip onboard. We think this is for use with the VBAT pin (for wiring a LiPo battery directly and charging via USB-C), however we have asked Waveshare to clarify.

---

Features

• Microcontroller: ESP32-S3R8 dual-core Xtensa 32-bit LX7 processor up to 240MHz, with 2.4GHz Wi‑Fi (802.11 b/g/n) and Bluetooth 5 LE
• Memory: 512KB SRAM, 384KB ROM, onboard 16MB Flash and 8MB PSRAM
• Display: 1.47" IPS capacitive touchscreen, 172×320 resolution, 262K colour
• Touch Interface: I2C capacitive touch interface reducing IO usage
• Storage: MicroSD card slot for data storage
• Connectivity: USB‑C for power and programming, onboard ceramic antenna
• Buttons: RESET and BOOT buttons
• Performance Features: Supports full‑speed USB standard, flexible clock control and multiple power modes for low‑power operation
• GUI Support: Capable of running LVGL and other GUI programs on the onboard display

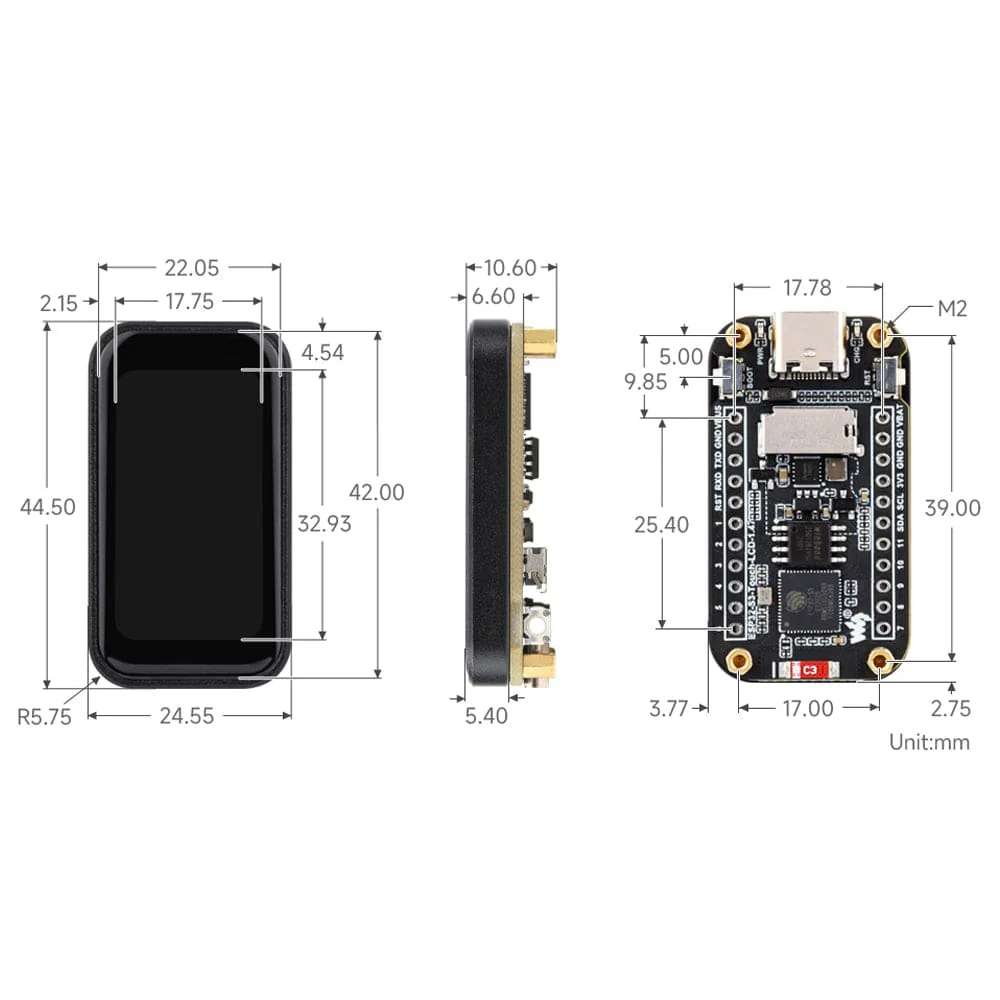

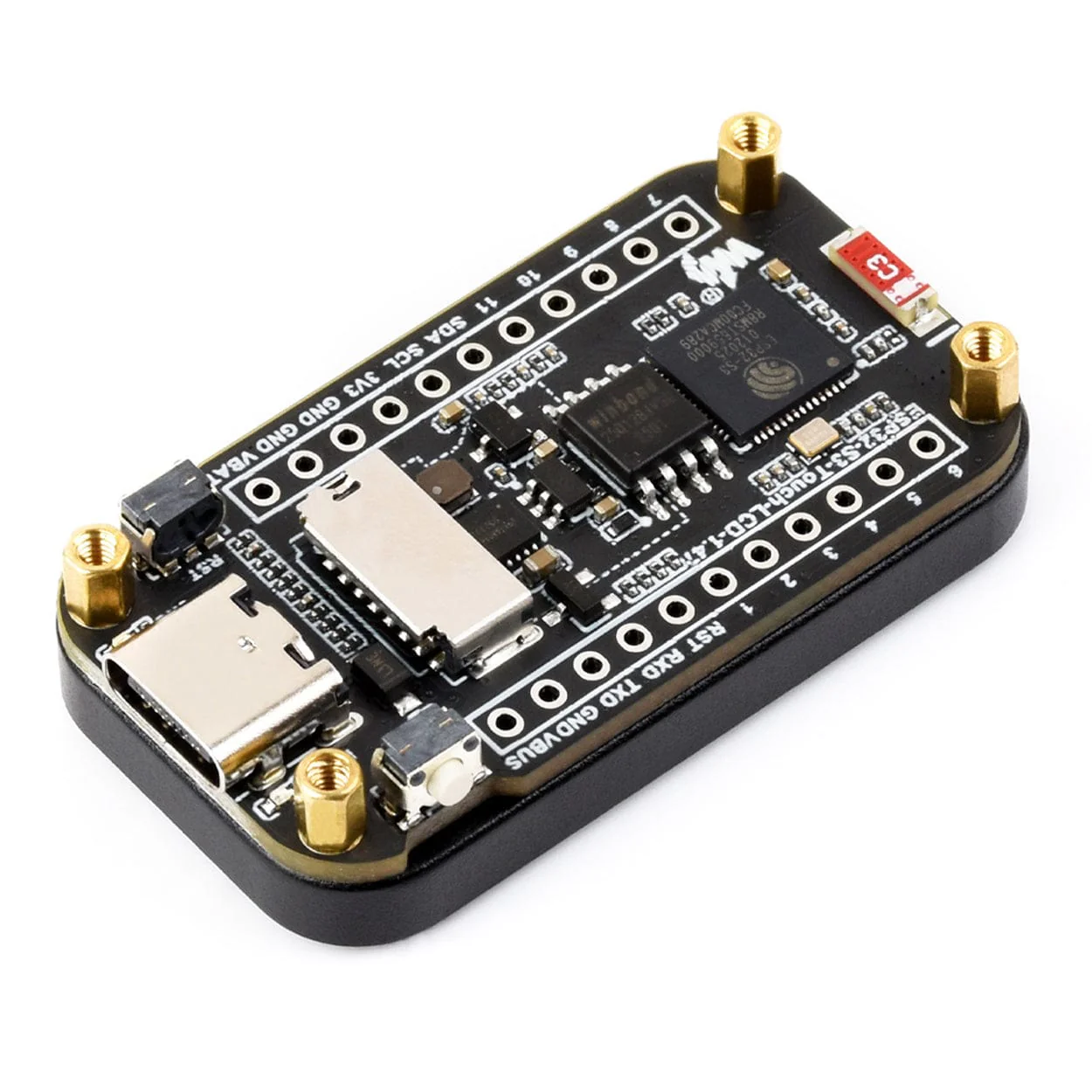

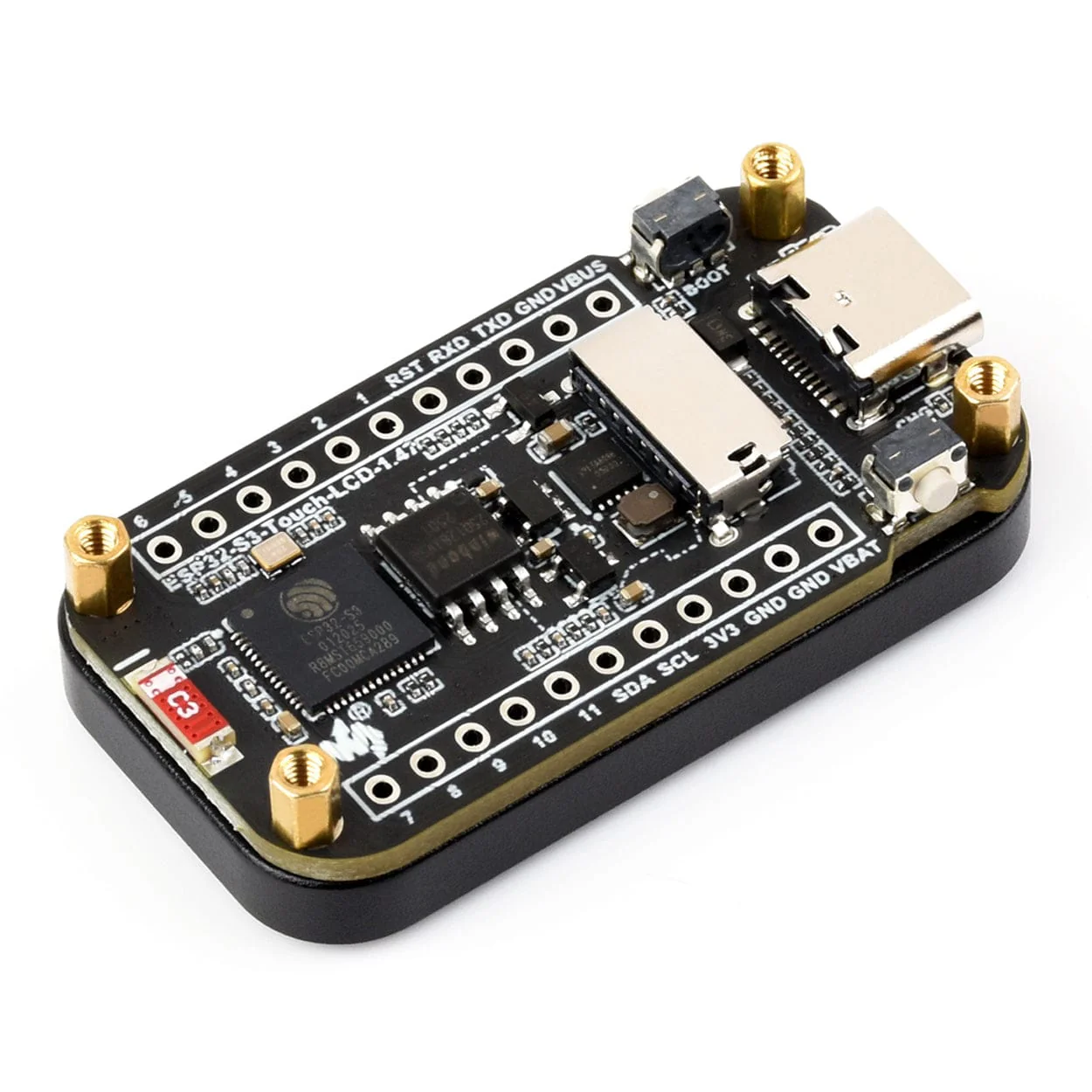

What's Onboard?

1. ESP32‑S3R8
2. Onboard ceramic antenna
3. 16MB Flash
4. ME6217C33M5G
   • Low dropout regulator, 800mA output (Max.)
5. ETA6098
6. MicroSD card slot
7. RESET button
8. BOOT button
9. Type‑C interface

Display Specifications

Display Size	1.47"
Resolution	172 × 320 pixels
Display Driver	JD9853
Touch Driver	AXS5106L
Display Interface	4‑wire SPI
Touch Interface	I2C
Display Panel	IPS
Touch Type	Capacitive

Resources

• Product Wiki

Pinout

Package Contents

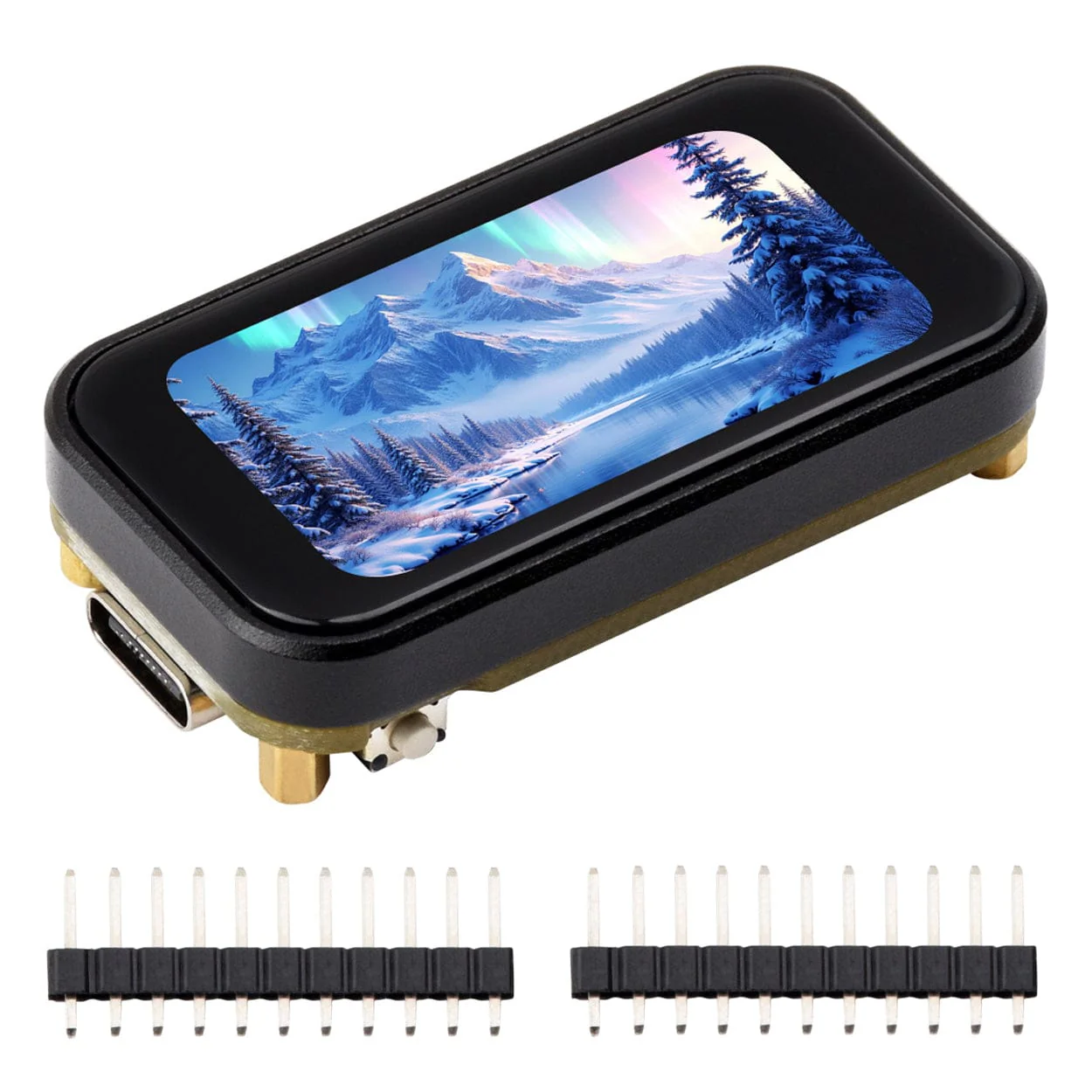

• 1x ESP32-S3 1.47" Touch Display Dev Board with SD Slot
• 2x Headers (loose or pre-soldered - select an option before adding to your cart)
