5'' 800 x 480 TFT Raspberry Pi DSI Touchscreen [Discontinued]

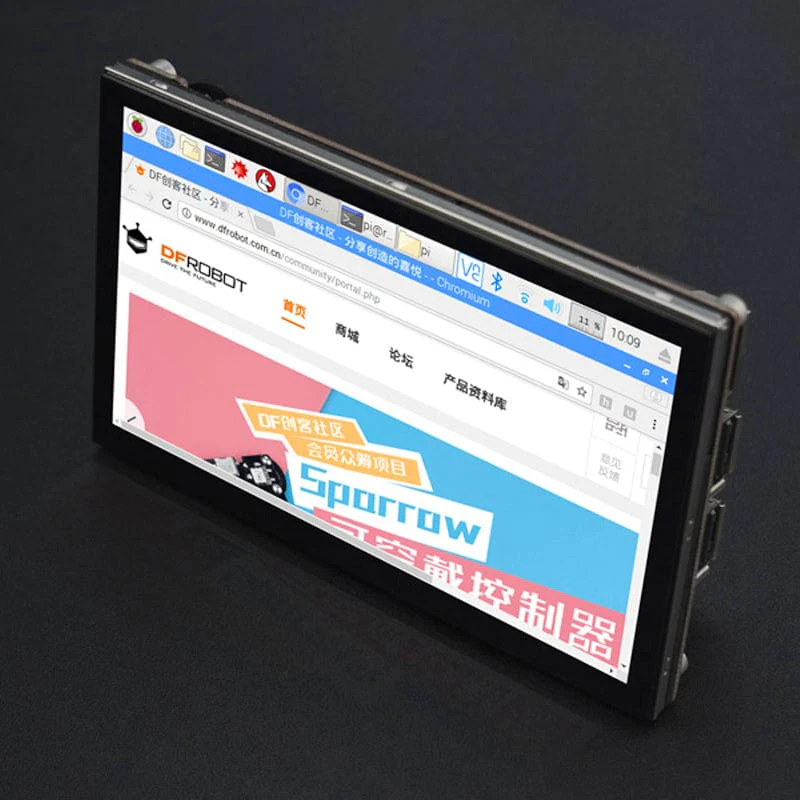

This 5" IPS touchscreen has a vibrant display with a capacitive 5-point touch panel and is ideal for Raspberry Pi projects. Its 800 x 480 resolution provides clear and colourful visuals, while the 178° viewing angle offers great visibility from all directions.

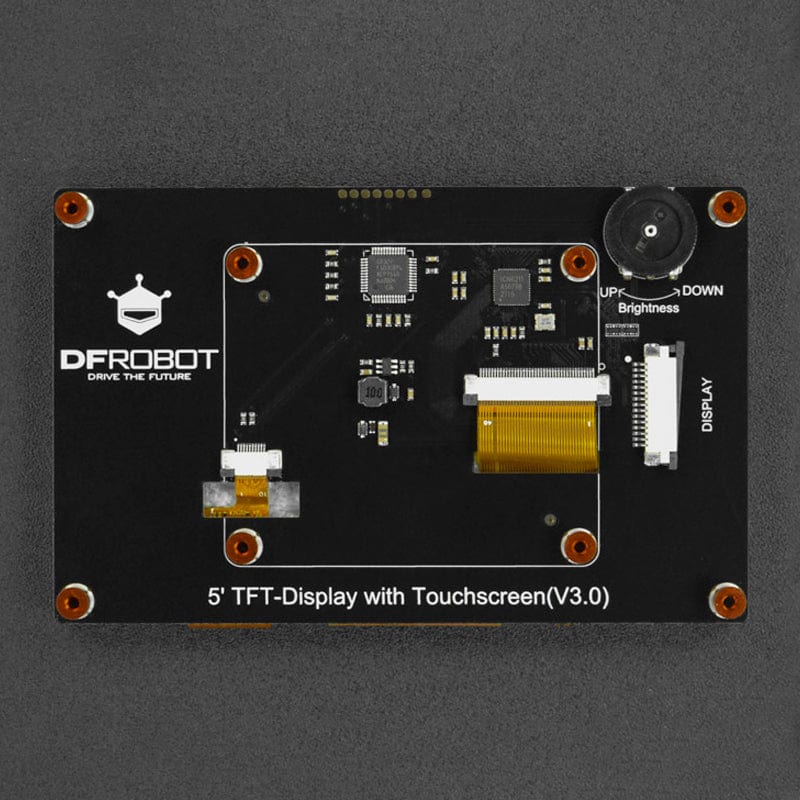

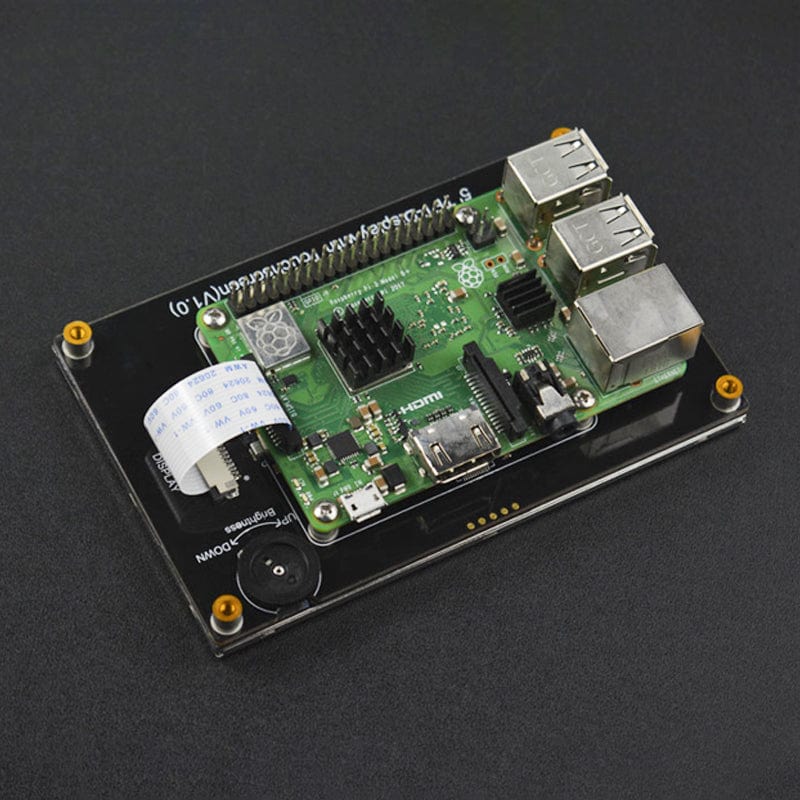

It connects directly via the DSI interface and supports hardware backlight adjustment. It's powered directly by the Raspberry Pi, so there's no need for external power, making setup easy. This display is compatible with multiple Raspberry Pi models, including the 3B, 3B+, 4B and the 5.
To use this with the Raspberry Pi 5, you will need this cable.
Note: Raspberry Pi is NOT included
Features
- Capacitive Touchscreen, Support 5 Touch Points.
- Raspberry DSI Direct Driver
- 800 x 480 resolution
Specifications
- Operating Voltage: 3.3V (Supplied by Raspberry Pi display interface)
- The Maximum Operating Current: 320mA
- Screen-off Current: 100mA
- Resolution: 800 x 480
- Video Interface: Raspberry Pi DSI
- Number of Touch Points: 5
- Viewing Angle: 80°/80°/80°/80°
- RGB888-16 Mega True Color
- Refresh Frequency: 60Hz
- Luminous Efficiency: 550 cd/㎡
- Operating Temperature: -20℃~70℃
- Dimension: 121mm x 76mm
- Mounting Hole Size: M2.5
- Outside Mounting Hole Position: 113mm x 68mm
- Inside Mounting Hole Position: 58mm x 49mm
Resources
Package Contents
- 1x 5'' TFT-Display with Touchscreen (V1.0)
- 1x FFC cable 45mm pitch 1.0mm-15-pin
- 8x M2.5 x 8 Standoffs
- 8x M2.5 x 6 DK4.9 Machine Screws
