20-pin 0.5mm FFC / FPC Extender [discontinued]

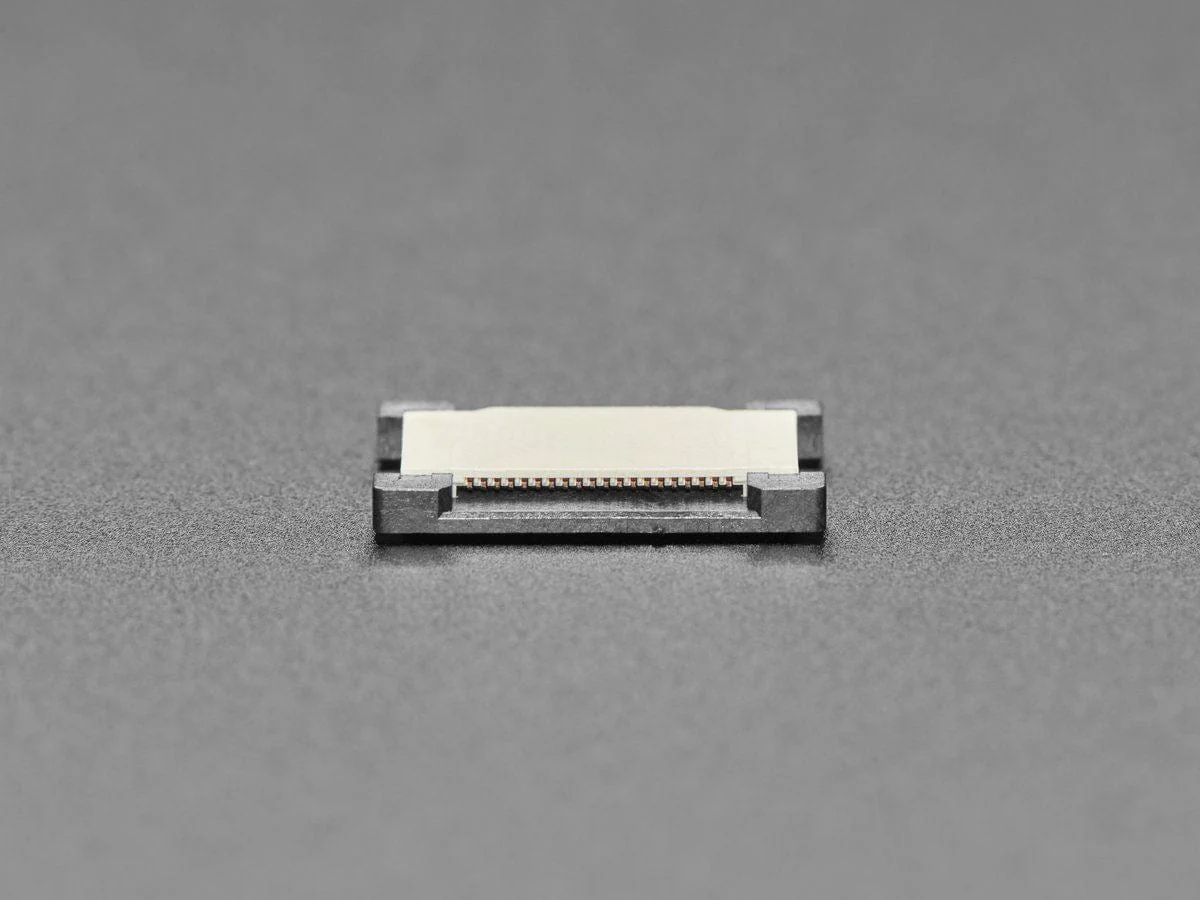

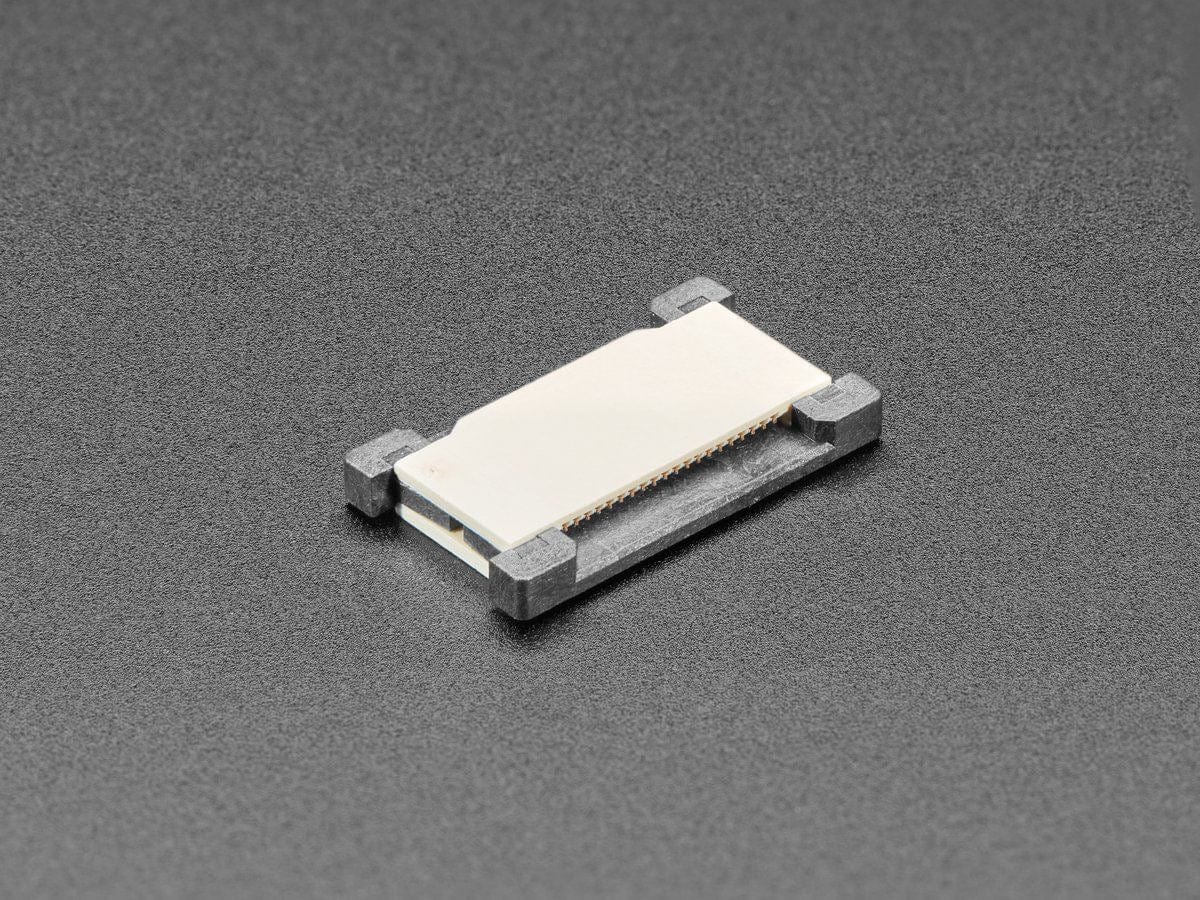

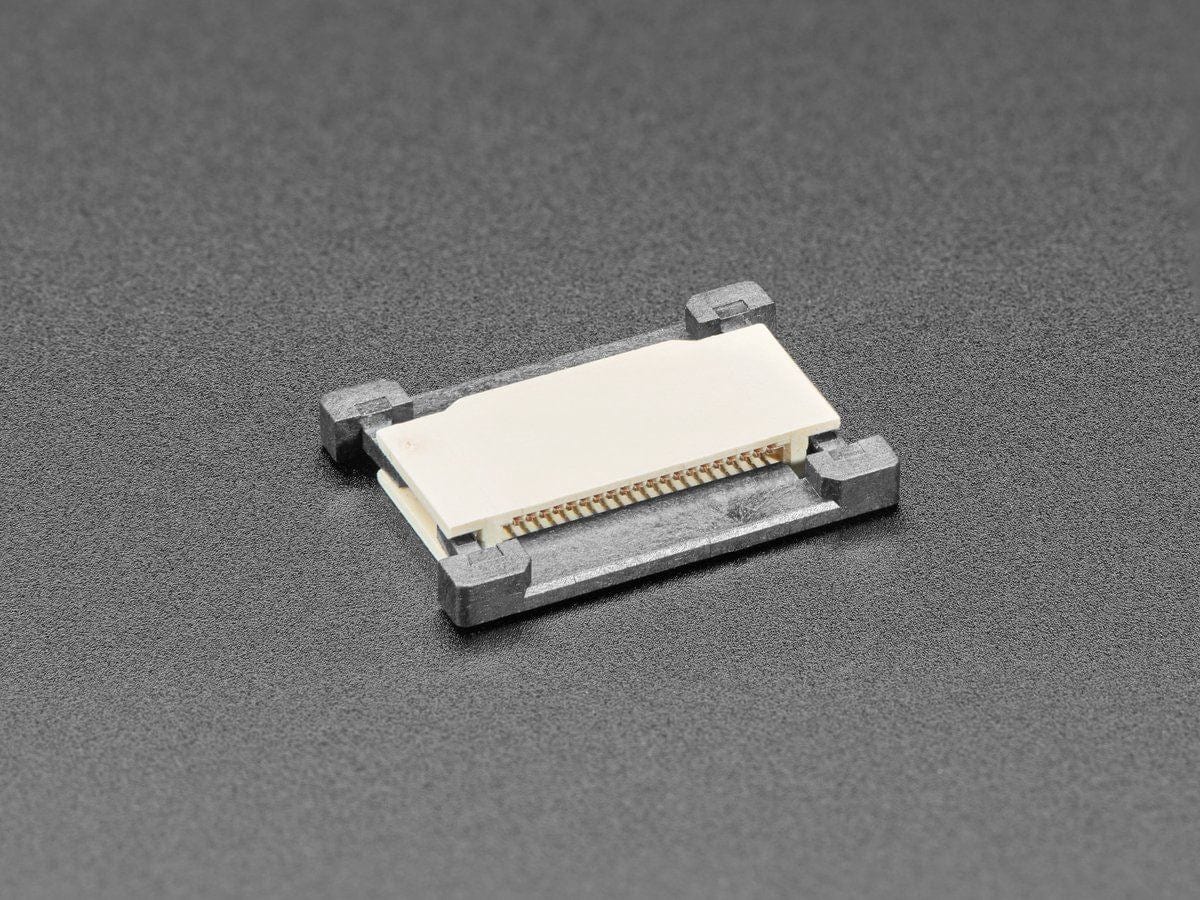

This 20-pin FFC / FPC Extender is very simple. It lets you connect two 20-pin 0.5mm pitch FFC (Flexible Flat Cable) / FPC (Flexible Printed Circuit) cables end-to-end and extend the length.
Note that pin 1 of one cable is connected to pin 20 of the other so you need to use a cable that has contacts on the same side (type A-A cable)
Carefully pry the two ears of the connectors, plug the cables with contacts pointing up, and then push the ears back in for a solid connection.
Technical Details

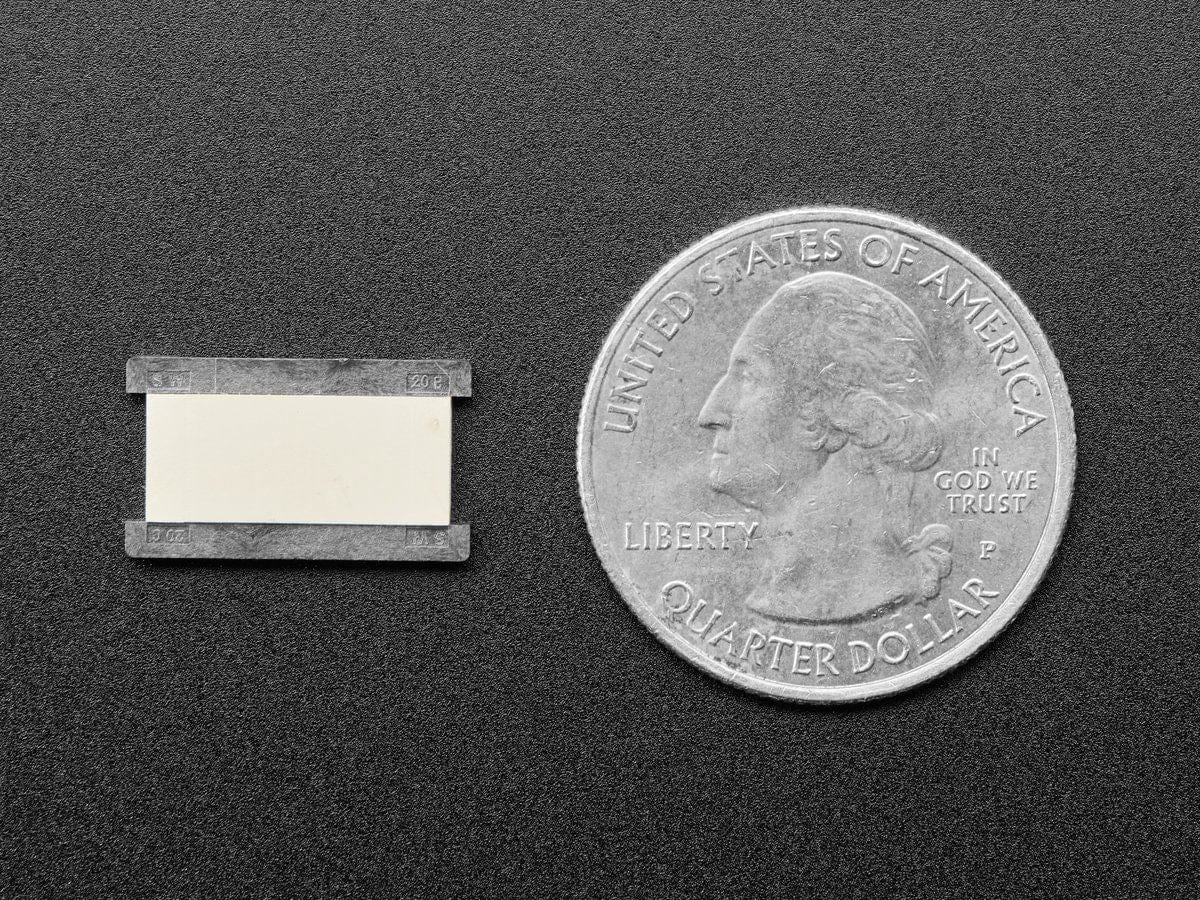

- Product Dimensions: 16.6mm x 9.6mm x 2.2mm / 0.7" x 0.4" x 0.1"
Original: $0.77
-65%$0.77
$0.27
Description
This 20-pin FFC / FPC Extender is very simple. It lets you connect two 20-pin 0.5mm pitch FFC (Flexible Flat Cable) / FPC (Flexible Printed Circuit) cables end-to-end and extend the length.
Note that pin 1 of one cable is connected to pin 20 of the other so you need to use a cable that has contacts on the same side (type A-A cable)
Carefully pry the two ears of the connectors, plug the cables with contacts pointing up, and then push the ears back in for a solid connection.
Technical Details
- Product Dimensions: 16.6mm x 9.6mm x 2.2mm / 0.7" x 0.4" x 0.1"
